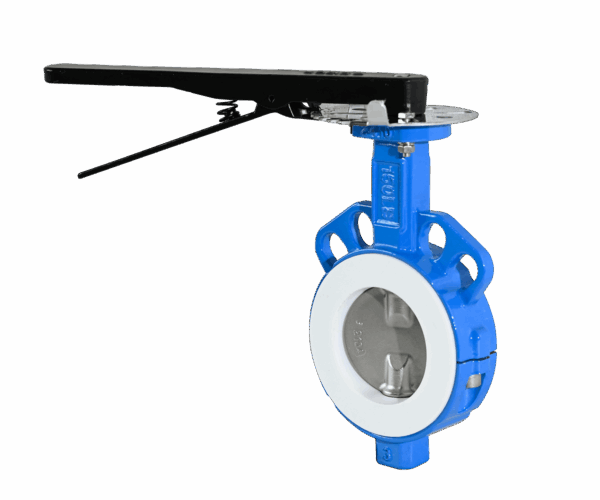

Butler – Wafer Long Neck (CF8M Disc)

Features & Design

Body Style: Wafer-Long Neck
Sizes: 2” – 16”
Pressure: 200 PSI NSCWP
BFWS
  • End Flange: ASME B16.5 Class 150
  • Body Material: Ductile Iron
  • Disc Material: CF8M
  • Stem: 17-4PH
  • Seat Material: PTFE
  • Seal Material: FKM
  • Operator: 10 position Lever, or Gear operator
  • Top Works: ISO 5211
  • API 609 (Design): Yes
  • API 598 (Test & Inspect): Yes
  • EN558-1 (Face to Face): ISO 5752
  • Temperature limits: 10°C to 150°C
