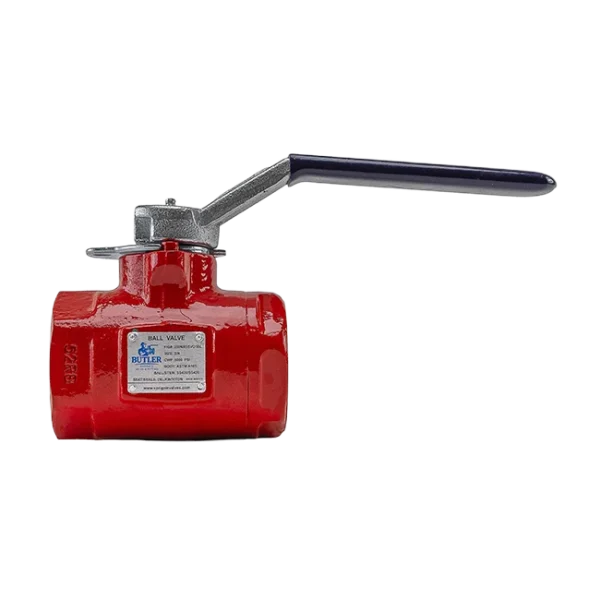

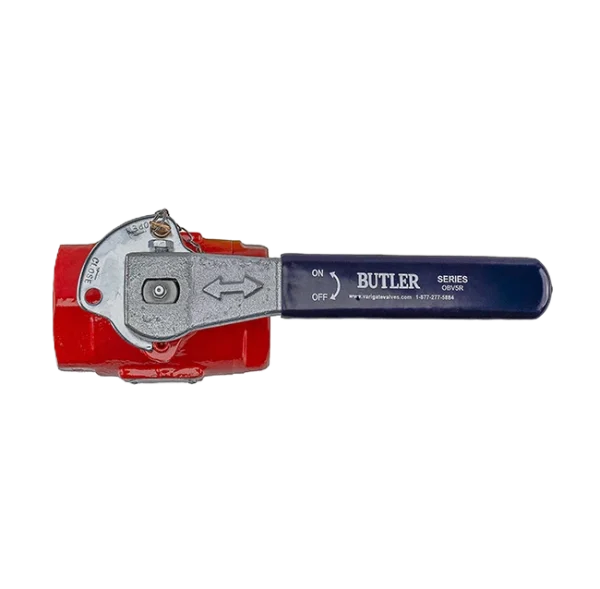

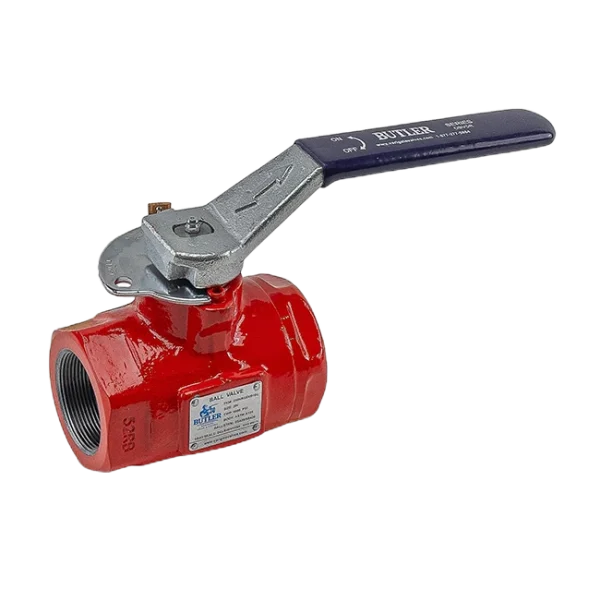

Butler - Series OBV5R
Features & Design
Body Style: 2 Piece
Sizes: 1” - 4”
Pressure: 5,000 psi NSCWP
Connectors: FNPT X FNPT
- Port: Reduced or Full
- Connections: FNPT X FNPT
- Body Material: Forged Carbon Steel
- Trim Material: Stainless Steel
- Seat Material: RPTFE or Delrin
- Seal Material: Viton
- Operator: Locking Handle
- Blow out proof stem: Yes
- ASME B1.20.1 (NPT): Yes
- ASME B31.3 (Design): Yes
- API 598 (Test & Inspect): Yes
- NACE MR0175: Yes
- Temperature limits: -29°C TO +232°C
