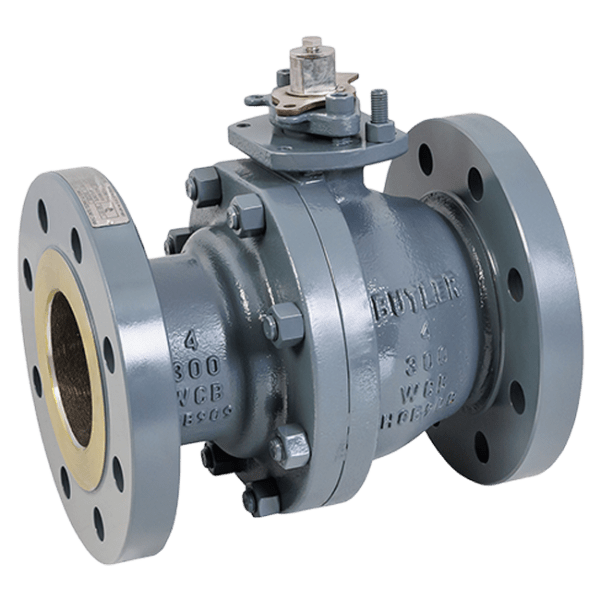

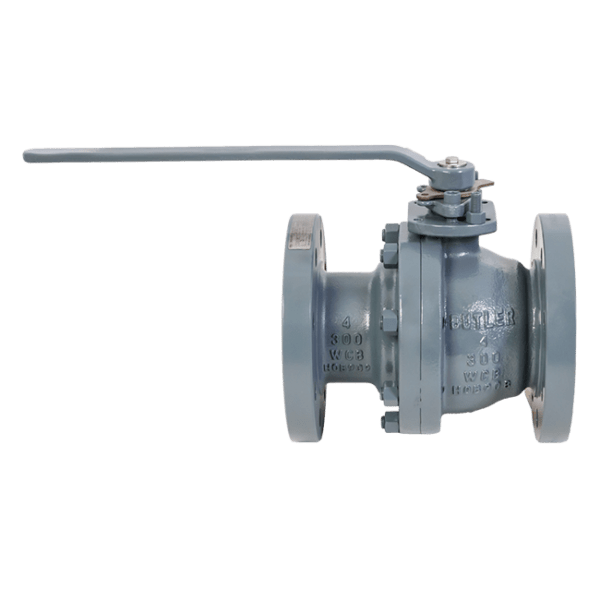

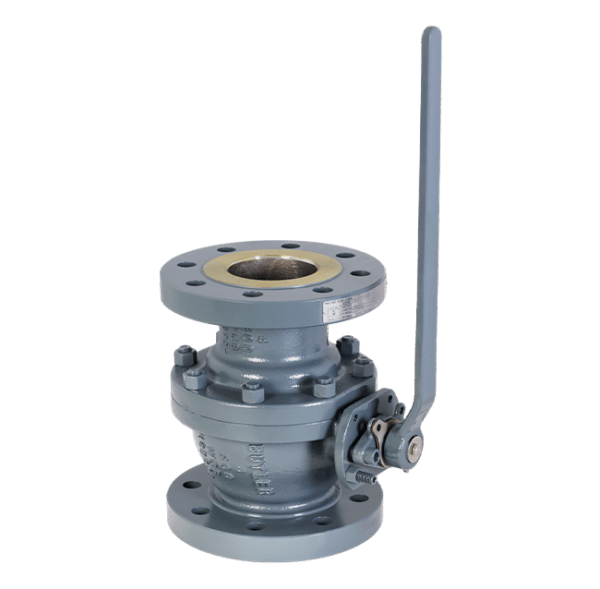

Butler Flanged Floating Ball Valve - Cub Series
Features & Design
Body Style: 2 piece cast
Sizes: 2” – 8”
Pressure: ASME Class 150, 300, 600
Connectors: RF
- Port: Reduced & Full Port
- Connections: RF
- Body Material: ASTM, A216 WCB Carbon Steel, A352-LCC, A351 CF8M Stainless Steel
- Trim Material: 316 SS
- Seat Material: Teflon, Devlon, PEEK
- Seal Material: HNBR, Viton, AFLAS, FFKM, Others Available
- Operator: Bare Stem, Lever, Gear Operator
- API 6D designed and manufactured
- API 6D monogrammed
- API 6D 100% (hydrostatic and pneumatic testing, including torque verification under full differential pressure)
- API 607 fire-test certified
- API Spec Q1
- ASME B16.10 end-to-end dimensions
- ASME B16.34
- ASME B16.5 compliant flanges
- Anti-blowout stem design
- Antistatic device for grounding the ball, stem and body
- Complete material traceability
- CSA Z245.15-22
- ISO 5211 mounting top work
- NACE MR0175/ISO 15156-1
- Pressure relief groove/slot in seats
- Lockable handle (lock not included)
