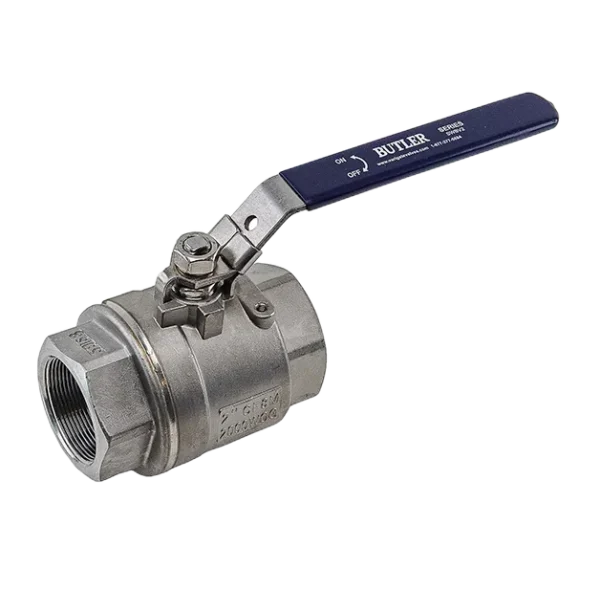

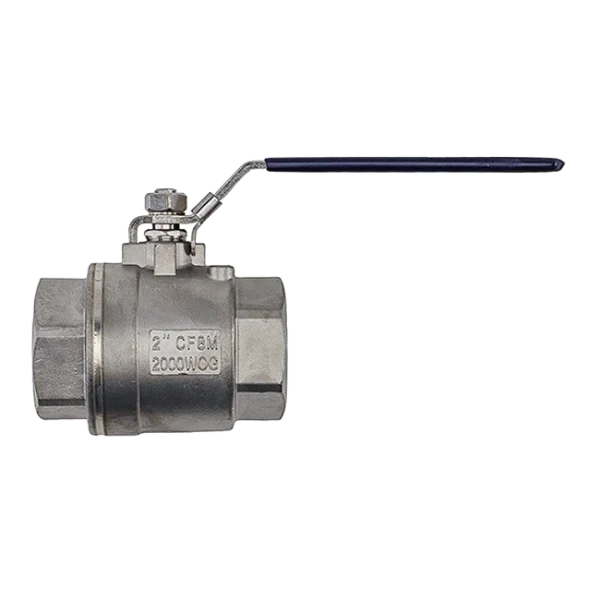

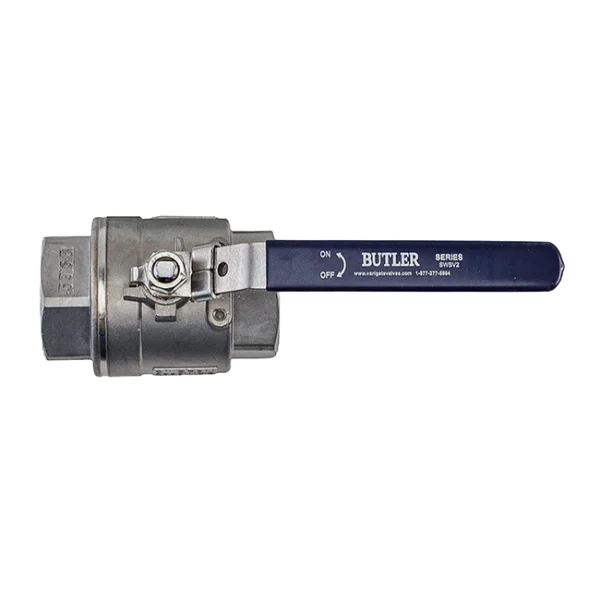

Butler - Series SWBV2 (Seal Weld)
Features & Design
Body Style: 2 Piece Seal Welded
Sizes: 1/4"-4"
Pressure: 2,000 psi NSCWP
Connectors: FNPT X FNPT
- Port: Full
- Connections: FNPT X FNPT
- Body Material: Cast Carbon / Stainless / LCC
- Trim Material: Stainless Steel
- Seat Material: RPTFE only in 2,000 or PEEK*
- Packing Material: PTFE or RPTFE/Graphite*
- Operator: Locking Handle
- Blow out proof stem: Yes
- Top Works: ISO 5211*
- ASME B1.20.1 (NPT): Yes
- ASME B16.34 (Pressure): Yes
- ASME BPVC Section Vlll, Division 1 (Design): Yes
- API 598 (Test & Inspect): Yes
- NACE MR0175: Yes
